ScorpionLTE Wired Vehicle GPS Tracker

Raiting:
4.5/5

Starting at $99.95

  • PINPOINT YOUR PROPERTY to within feet. Easy under-dash installation with 2 wires allows usage monitoring and real-time vehicle recovery.
  • 10 – 30 V DC With Overvoltage Protection
  • INTERNAL BACKUP BATTERY will keep your tracker alive if someone disconnects your main battery
  • EASY INSTALL with 2 wires (positive and negative)
  • iButton Driver Login (Gold Plan)
  • DRIVER SCORE CARD – Monitor your driver behavior and score each driver automatically (Gold plan)
Clear
Loading...

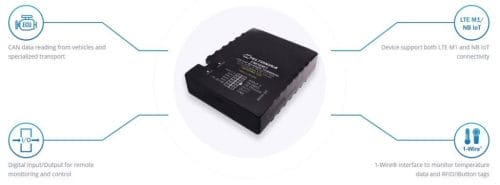

The LoneStar Tracking Scorpion LTE is a GNSS, LTE CAT M1, NB IoT terminal for almost any  application. The Scorpion LTE is designed for light vehicle tracking but also suitable for advanced applications like logistics, delivery services, utility transport and more. It’s excellent for refrigerated transport, because this GPS Tracker has extended input/output sets and a 1-wire interface for temperature monitoring. With CAN adapters, the Scorpion can be even used in agriculture or construction & mining. Moreover the Scorpion supports LTE CAT M1 and NB IoT, which makes this device usable with newest and most cost efficient technologies.



LTE M1/NB IoT/GSM
CATM1 and NB IoT technologies brings the next generation of connectivity

Internal battery
Feel safe when your vehicle is monitored by device with an internal backup battery. If your vehicle battery is disconnected, the Scorpion GPS tracking device still remains online and sends data to our servers.

Input and Output
With configurable inputs, you can monitor external events, be it water level threshold crossing or a
simple door sensor. Receive alerts remotely either via SMS or e-mail.

1-Wire®
1-Wire® protocol support enables you to identify up to 500 authorized drivers and connect temperature sensors.  iButton® or RFID® technology allows you to prevent unauthorized access to your fleet. Temperature sensors give you the possibility to monitor and control your cargo.

CAN adapters support
Additional accessories such as the LV-CAN200, ALLCAN300 allow you to acquire CAN data from any kind of asset such as light duty vehicles, trucks, buses, agriculture (tractors), and special transports. Our supported vehicles list contains more than 1800 models. Each vehicle model has particular instructions for installation with wiring diagrams and picture. Available parameters: RPM, Total fuel, Fuel level, Vehicle mileage and more.

Example Applications:

Trailer tracking
Nothing gives you a greater advantage in logistics than knowing the location of all your goods in real time. Not everything is connected to trucks and has a driver around. Trailers are more difficult to track: it can be left for days or remain in ships for weeks before getting any external power. Our
solution has long autonomous working hours, is resistant to harsh environments, and gives
possibility to read cargo temperature. You can also monitor which truck is connected to which trailer for best work organization and accounting.

Delivery transport
Quick and professional distribution of goods is the key to profit in delivery businesses. Route
optimization can reduce your fuel expenses up to 30%; driver identification and behavior
monitoring ensure high delivery standard and accountability, if any complaints need to be
investigated. Gain full control of your fleet and resources with our solution.

Public safety services
Concept of public security has changed significantly in the past decade. Safety of our society
depends on technology which allows us to monitor, track and respond to emergency calls
faster than ever. With our solution you will always know the current location and status of your
vehicle, thus ensuring quick response time to any kind of situation. Real time status of
special equipment like sirens, water pumps, ladders and etc. guarantees accountability and
ensures correct exploitation.

Rental cars
Vehicle location, status and history are the main aspects for all rental service
providers. Prevent theft with remote car lock management, receive notifications about
possible contract violations, monitor driver behavior and areas where vehicle is driven –
obtain standard tracking information and gain full control of your fleet.

Taxi
For Taxi Companies to be competitive and profitable, you must have the most innovative
technology on your side. It is not enough to deliver customer from point to point, you
need to ensure safety and accountability. Communicate with driver via Bluetooth headset, send
pick up destination, acquire necessary routing and fuel consumption information – manage
your fleet with our solution for taxi business.

Whats Included:

(1) Scorpion LTE tracking device
(1) Wiring harness
(1) Installation Directions (3 wire install)

Service Plan

Silver, Gold

Service Length

Month to Month, Yearly

Technical Data

Module
NameTG1000, Quectel BG96
TechnologyGNSS, GSM/GPRS/4G LTE CAT.M1
GNSS
GNSSGPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS
Receiver33 channel
Tracking sensitivity-165 dBM
Accuracy< 3 m
Hot start< 1 s
Warm start< 25 s
Cold start< 35 s
Cellular
TechnologyGSM/GPRS/4G LTE
LTE bandsFDD-LTE: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/B19/ B20/ B26/ B28 TDD-LTE: B39 (for Cat.M1 only)
GSM/GPRS bands850/900/1800/1900MHz
Data transferGPRS and EDGE class 12
Data supportSMS (text/data)
Power
Input voltage range10 – 30 V DC with overvoltage protection
Back-up battery170 mAh Li-Ion battery
Power consumptionAt 12V < 5 mA (Deep Sleep)
At 12V < 18 mA (GPS Sleep)
At 12V < 50 mA (nominal)
Interface
Digital Inputs4
Digital Outputs2
Analog Inputs2
GNSS antennaInternal High Gain
GSM antennaInternal High Gain
USBMini-USB
LED indication2 status LED lights
SIMStandard SIM
Memory1 MB internal flash memory
Physical specification
Dimensions77 x 62 x 19 mm (L x W x H)
Weight70,4g
Operating environment
Operating temperature (without battery)-40 °C to +85 °C
Storage temperature (without battery)-40 °C to +85 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP41
Battery charge temperature0 °C to +45 °C
Battery discharge temperature-20 °C to +60 °C
Battery storage temperature-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Features
SensorsAccelerometer
ScenariosGreen driving, Immobilizer, Overspeeding, Jamming, Idling detection, iButton detection, Trip feature, Geofencing, AutoGeofencing
Sleep modesGPS Sleep, Deep Sleep
Configuration and firmware updateFOTA, USB cable
SMSConfiguration, Events, DOUT control, Debug
GPRS commandsConfiguration, DOUT control, Debug
Time SynchronizationGPS, NTP
Fuel monitoringAnalog input, LVCAN200/ALLCAN300
Ignition detectionDigital Input 1, Accelerometer, External Power Voltage
Certification & Approvals
RegulatoryCE/RED, FCC

Service Plans

Service Plans:SilverGold
Feature
Movement Updates2 min1 min
Heartbeat Updates25hrs25hrs
Automatic Emailed ReportsXX
Over the Air UpdatesXX
IOS and Android AppXX
Live GPS TrackingXX
Starter DisableXX
CAN Bus X
iButton X
Driver BehaviorXX
Fleet ManagementXX
Vehicle Booking X
Temperature MonitoringXX
Speeding AlertXX
Power Disconnect AlertXX
Battery Level AlertXX
Geofencing AlertXX
SOS AlertXX
Tow AlertXX
Ignition AlertXX
OBD DTC Alert X
Idle AlertXX
Working Hour AlertXX
